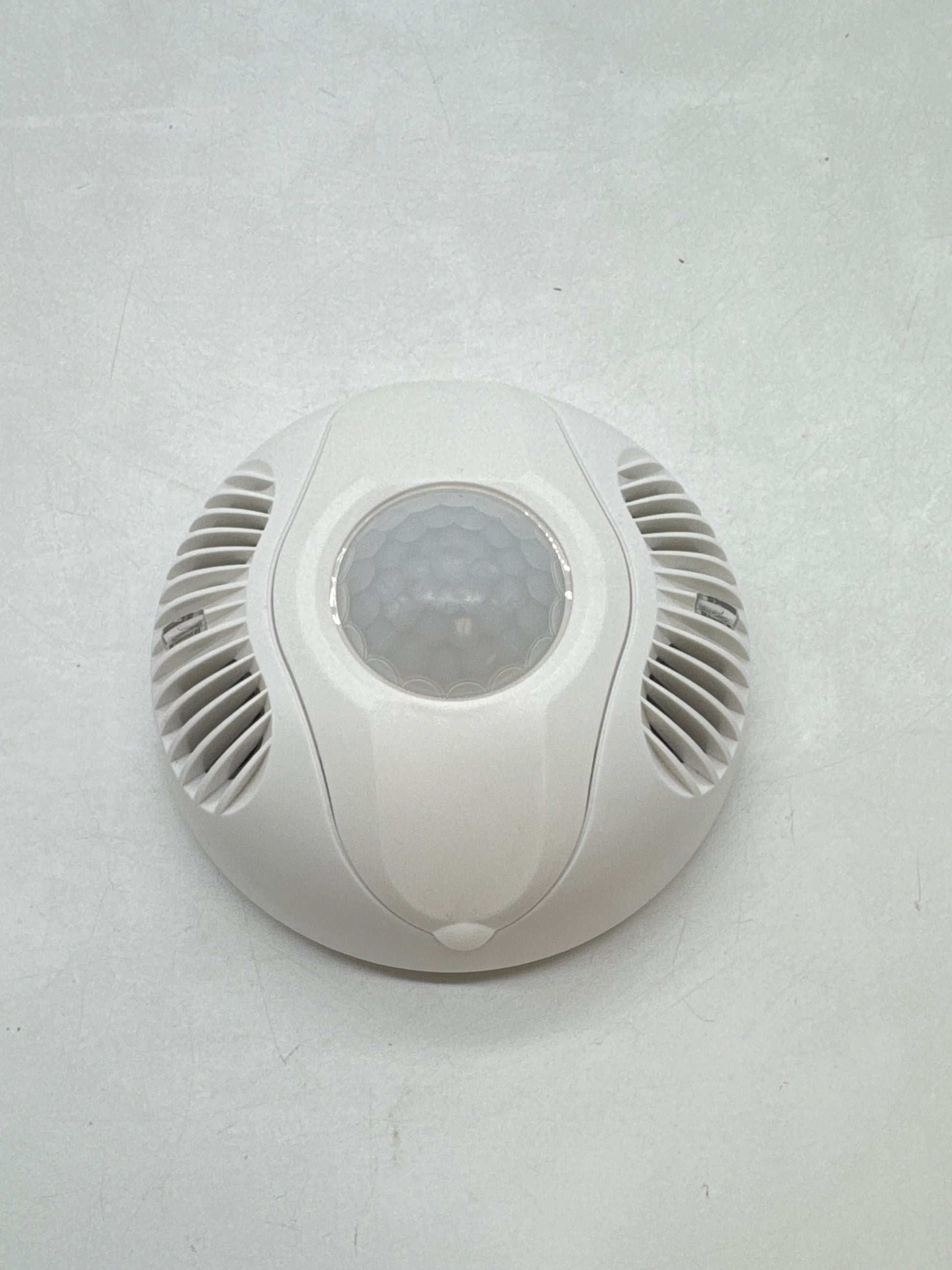

The PS-DTC24-R increases area lighting energy efficiency quickly and easily by combining industry leading Passive Infrared (PIR) technology with Ultrasonic for superior detection. Provides 2 SPDT 1 Amp, 30 VDC Form C relay contacts for integration with NexLight 2-Wire system and BMS/HVAC systems. Factory preset to deliver significant savings out of the box, this sensor has additional options to further increase energy savings if desired. The PerfectSense PS-DTC24-R is a low-voltage sensor that works with PerfectSense class 2 power supply , to automatically control lighting. The sensor turns the lights on and keeps them on when occupancy is detected and will turn the lights off after the delayed-off time has expired.
Specifications
Features
360˚ Coverage Pattern 100% Digital MultiviewTM PIR Dual technology uses PIR + U/S Superior RF immunity Adjustable Time Delay (30 sec-30 min) Walk Through Mode Daylight Override Mode Simple Test Mode Mounts in drop ceilings and solid ceilings LED’s provide indication of occupancy sensing
Electrical

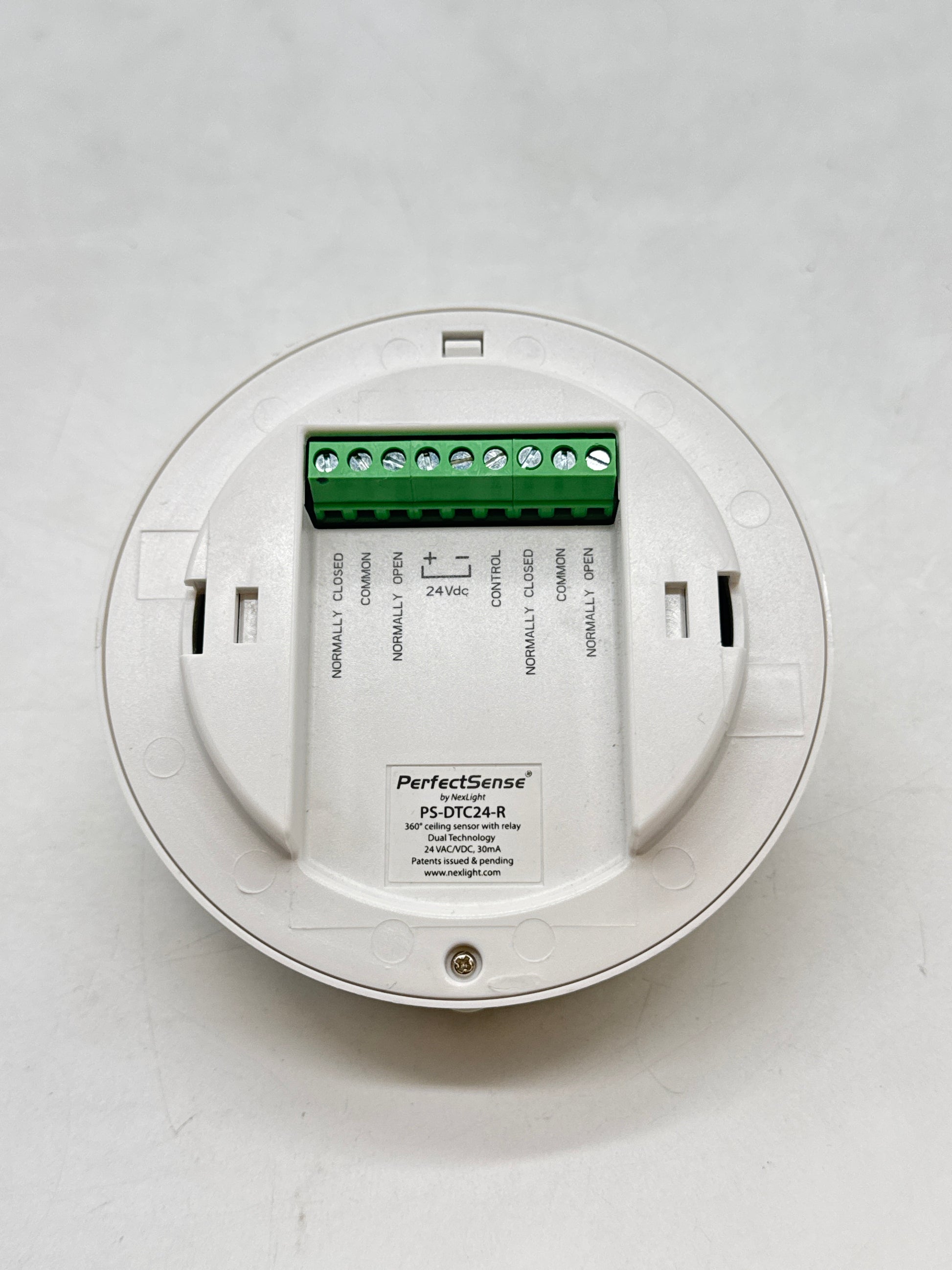

Power Requirements: 24VDC, from powerpack Current Consumption: 45mA Output: 24VDC active high logic control signal with short circuit protection Isolated Relays: 2 SPDT 1 Amp, 30 VDC Form C Wiring Diagram: See Fig. 2
