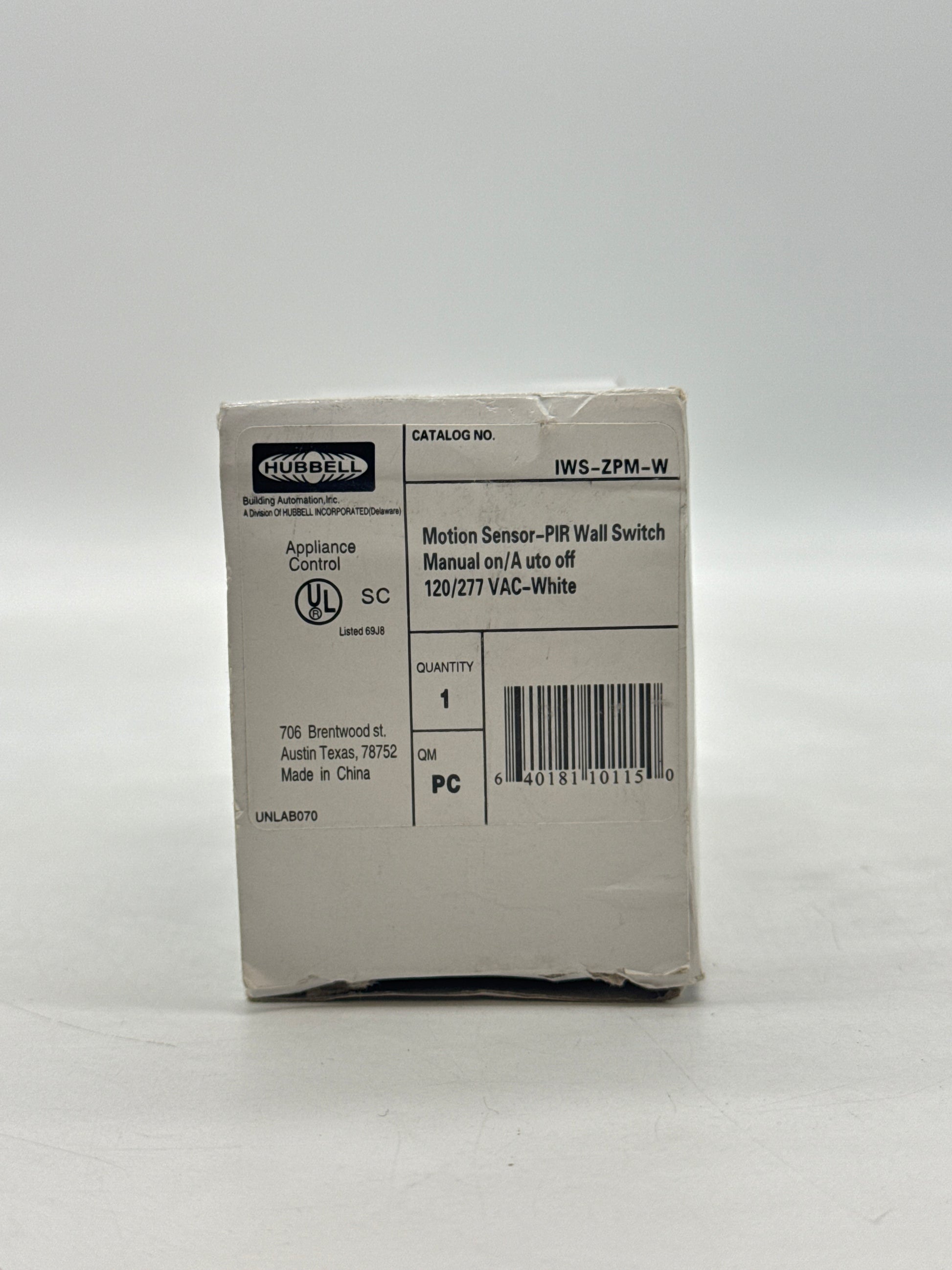

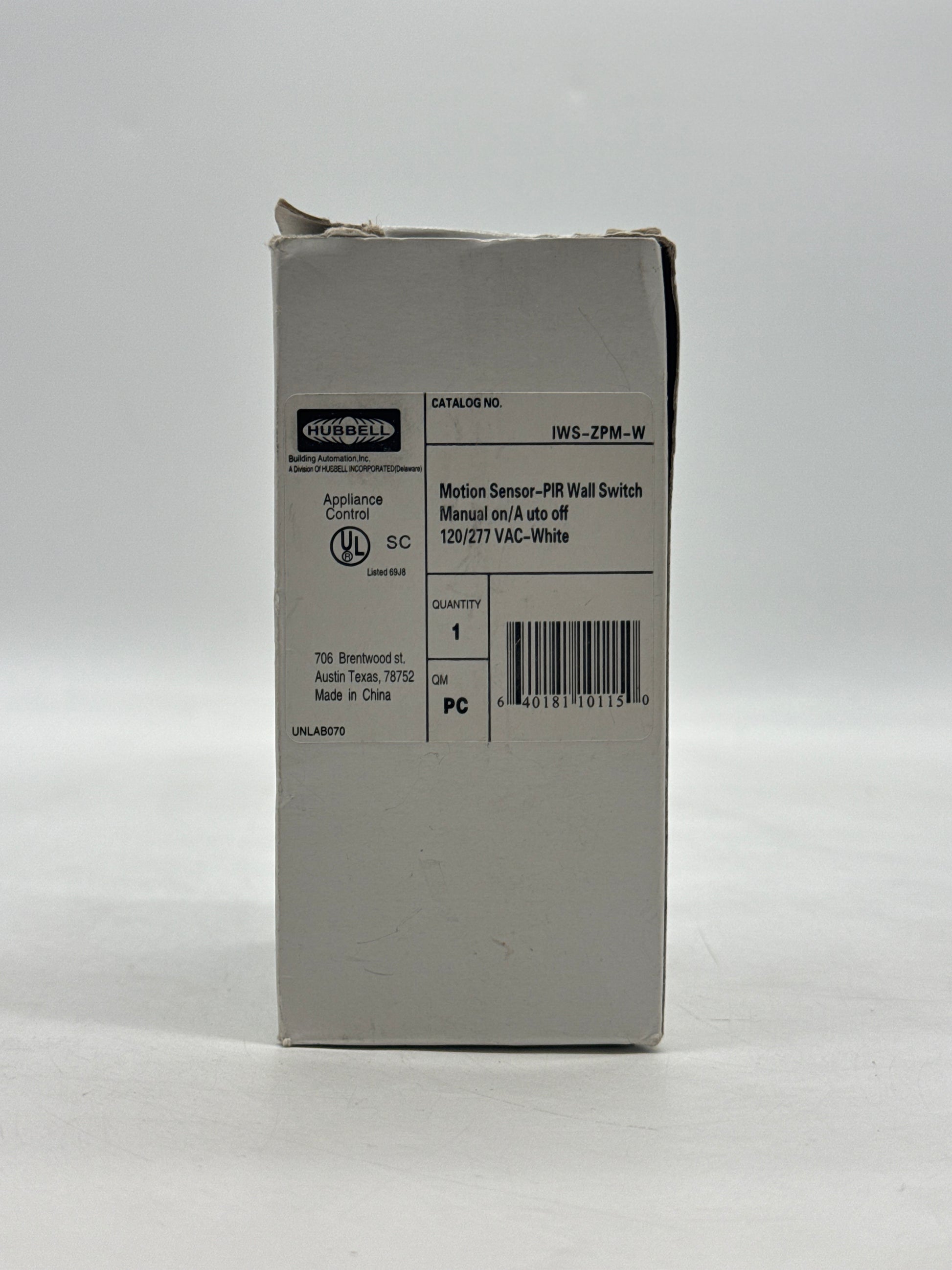

New HUBBELL IWS-ZPM-W Motion Sensor PIR Wall Switches
New HUBBELL IWS-ZPM-W Motion Sensor PIR Wall Switches
Regular price
$19.99 USD
Regular price
Sale price
$19.99 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
| Brand | Hubbell |
| Model | Building Automation Passive Infrared Occupancy Sensor |
| Model Number | IWSZPMW |
| Type | Manual-On, Auto-Off with Manual Override |
| Color | White |
| UPC | 640181101150 |
| Included | Original Packaging |
| Condition | Brand New |
| Shipping | Free Shipping |
| Return | 30 Days Free Return |
Description:

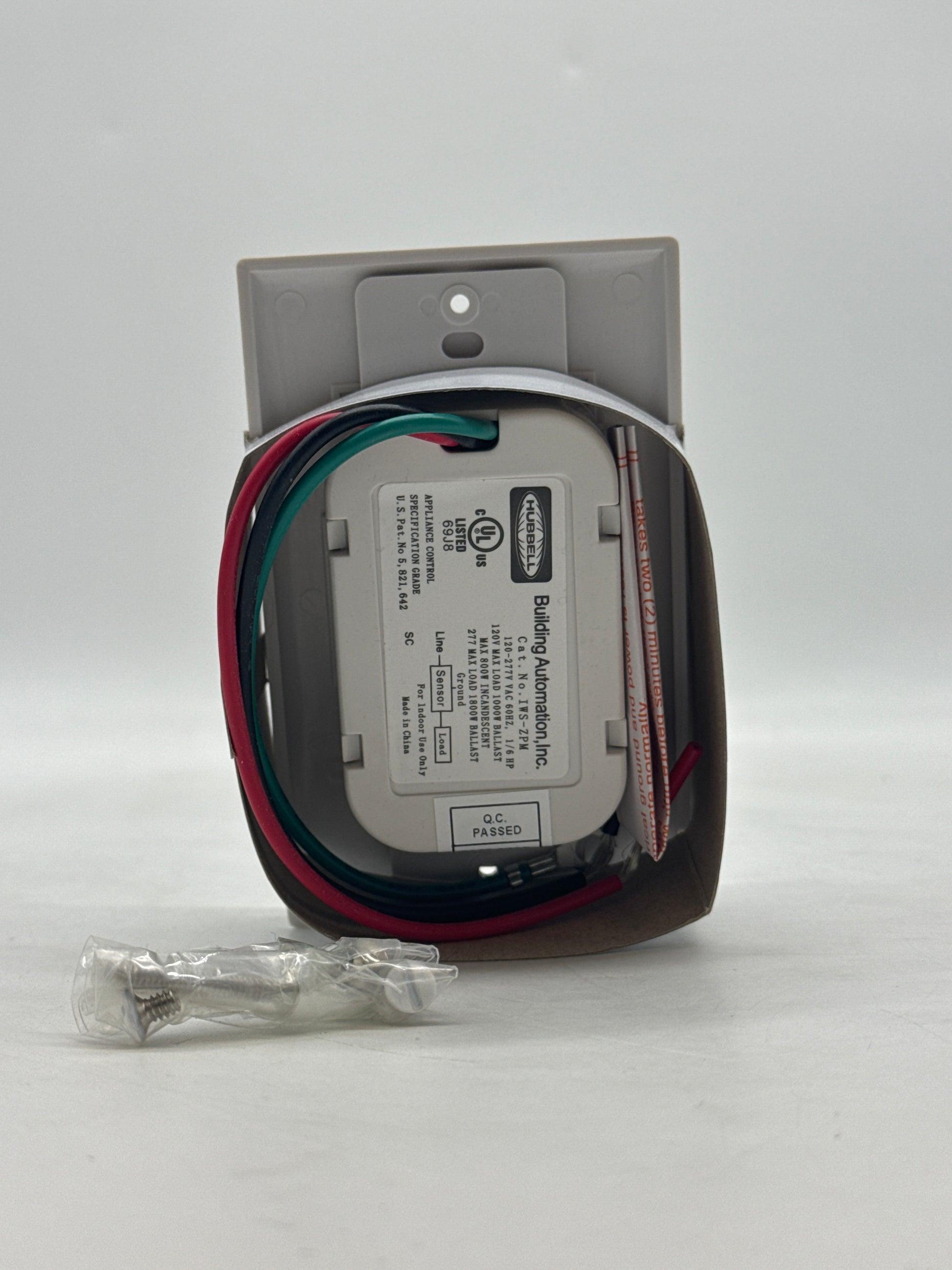

- Wall Switch Sensor
- Type Wall Switch Occupancy Sensors
- Sensor Type Passive Infrared
- Voltage Rating 120/277 VAC
- Load Type Incandescent/Fluorescent
- Load Rating 800 W at 120 VAC (Incandescent), 1000 W at 120 VAC (Fluorescent), 1/6 HP at 120 VAC, 1800 W at 277 VAC (Fluorescent), 1/6 HP at 277 VAC
- Area Coverage 900 Sq Ft
- Field of View 180 Deg
- Time Delay 30 Min (Fully), 30 Sec (Fully)
- Finish White
- Mounting Wall
- Size 2.75 Inch W x 1.625 Inch D x 4.5 Inch H
- Application Indoor
- Approval UL, CUL
- Operating Temperature 32 to 122 Deg F
UPC: 64018110115
Part Number: IWSZPMW
Status: Stock
The IWSZPM is a Title 24 compliant, manual-on, passive infrared (PIR) wall switch vacancy sensor that provides excellent energy savings and reliable motion detection. The sensor's low-profile casing design provides the perfect wall switch for residential areas, such as bathrooms, garages, laundry rooms, utility rooms, and dining rooms. The IWSZPM's manual-on/automatic-off operation meets Title 24 guidelines for residential lighting, which require a person to manually turn on lighting and a system to automatically turn off lighting during vacancy.
Features / Benefits
- Zero Arc Point Switching
- No Minimum Load Requirement
- Adjustable Time Delay and Sensitivity
- Walk Test Indicator
- Title 24 Compliant
Specifications
| MANUFACTURER PART NUMBER | IWSZPMW |
| Short Description | "2.75"" x 1.625"" x 4.5"", 120/277 VAC, 900 Sq Ft Area Coverage, 180D Field of View, White, Passive Infrared, Wall Switch Sensor" |
| ADDITIONAL INFORMATION | Operating Temperature 32 to 122 Deg F |
| Features/Benefits | Zero Arc Point Switching; No Minimum Load Requirement; Adjustable Time Delay and Sensitivity; Walk Test Indicator; Title 24 Compliant |
| Marketing Text | The IWSZPM is a Title 24 compliant, manual-on, passive infrared (PIR) wall switch vacancy sensor that provides excellent energy savings and reliable motion detection. The sensor's low-profile casing design provides the perfect wall switch for residential areas, such as bathrooms, garages, laundry rooms, utility rooms, and dining rooms. The IWSZPM's manual-on/automatic-off operation meets Title 24 guidelines for residential lighting, which require a person to manually turn on lighting and a system to automatically turn off lighting during vacancy. |
| PRODUCT NAME | Wall Switch Sensor |
| SEO_Description | Wall Switch Sensor |
| Series/Model | IWSZP |
| UPC | 640181101150 |
