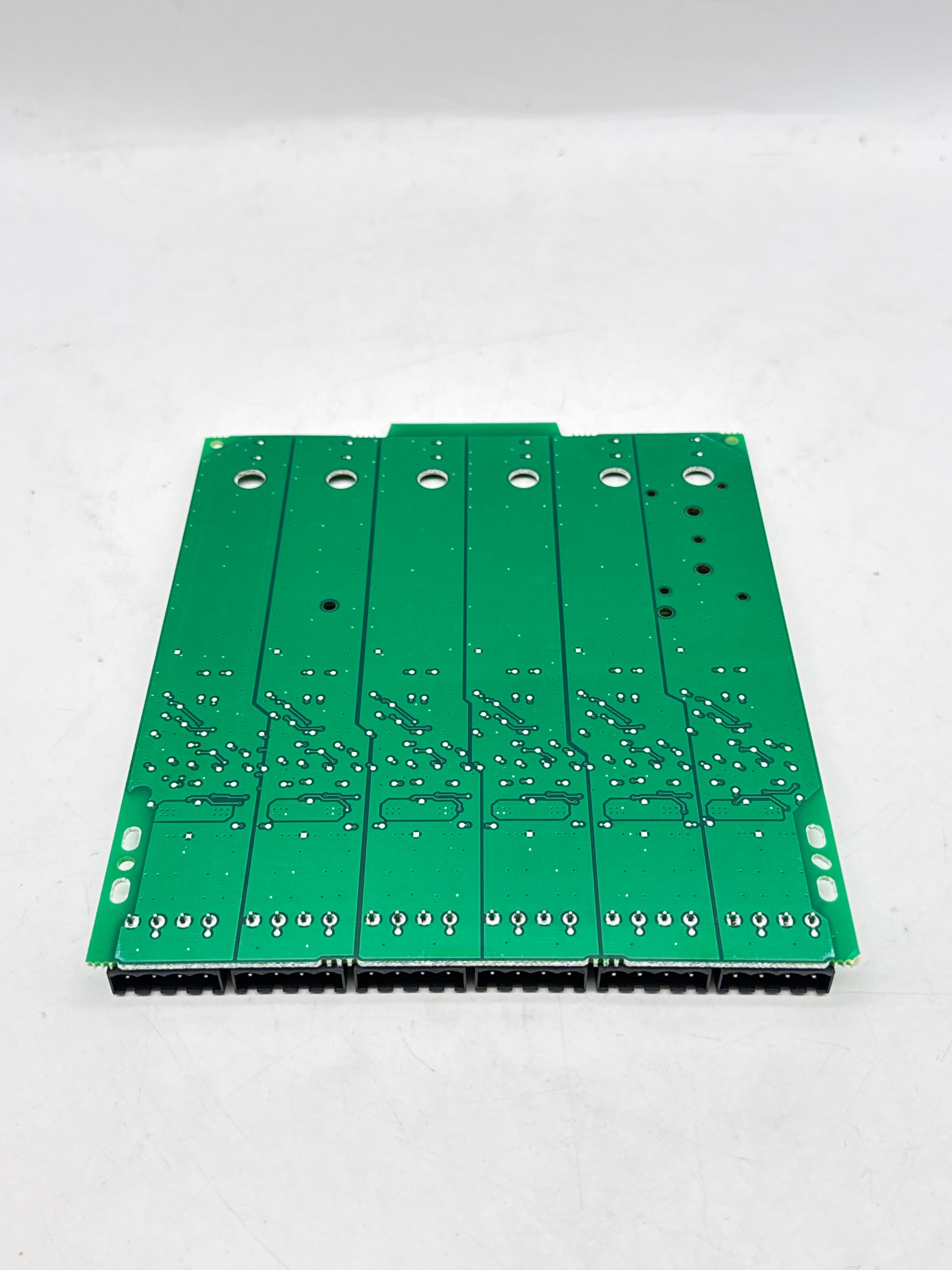

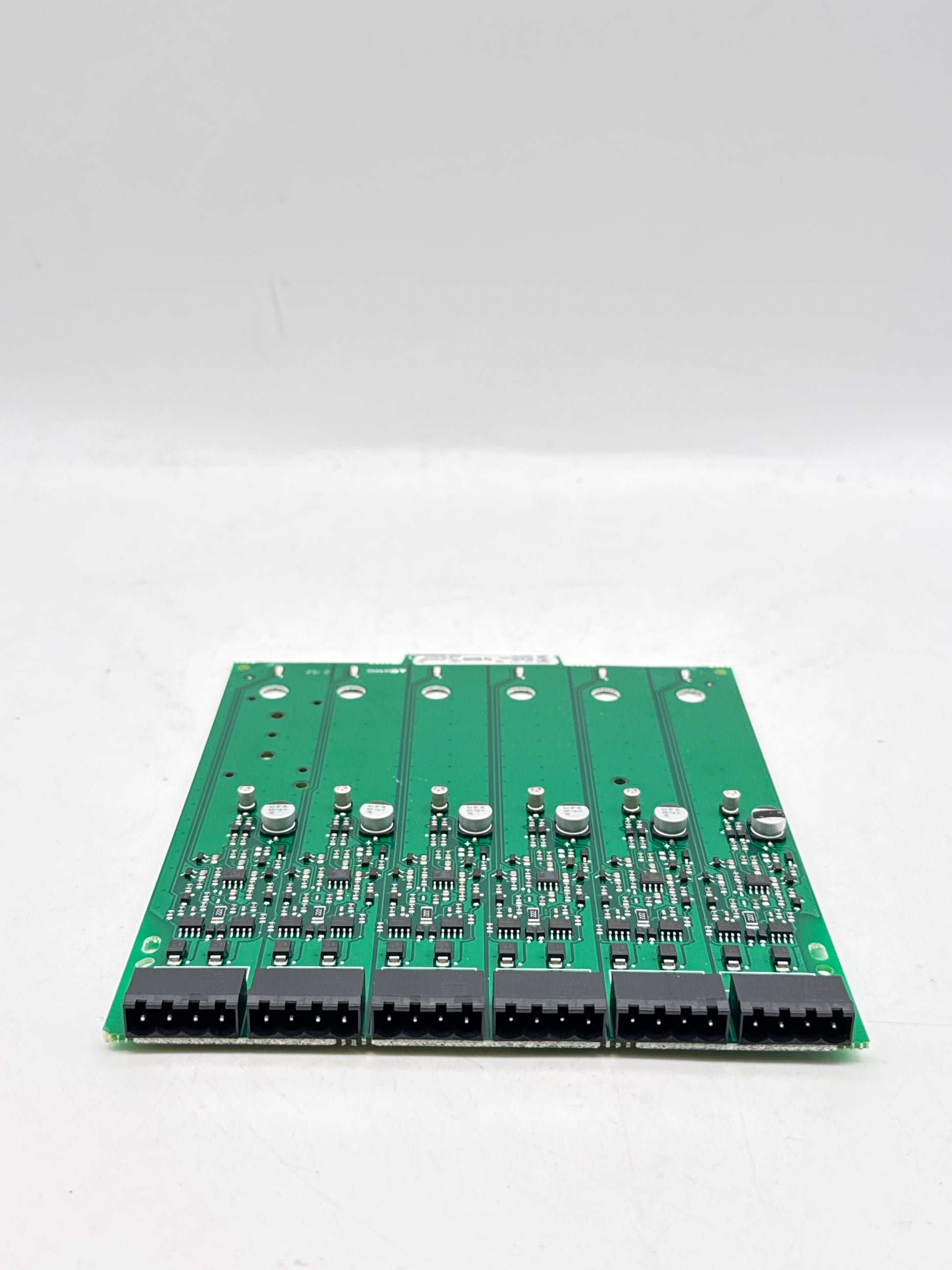

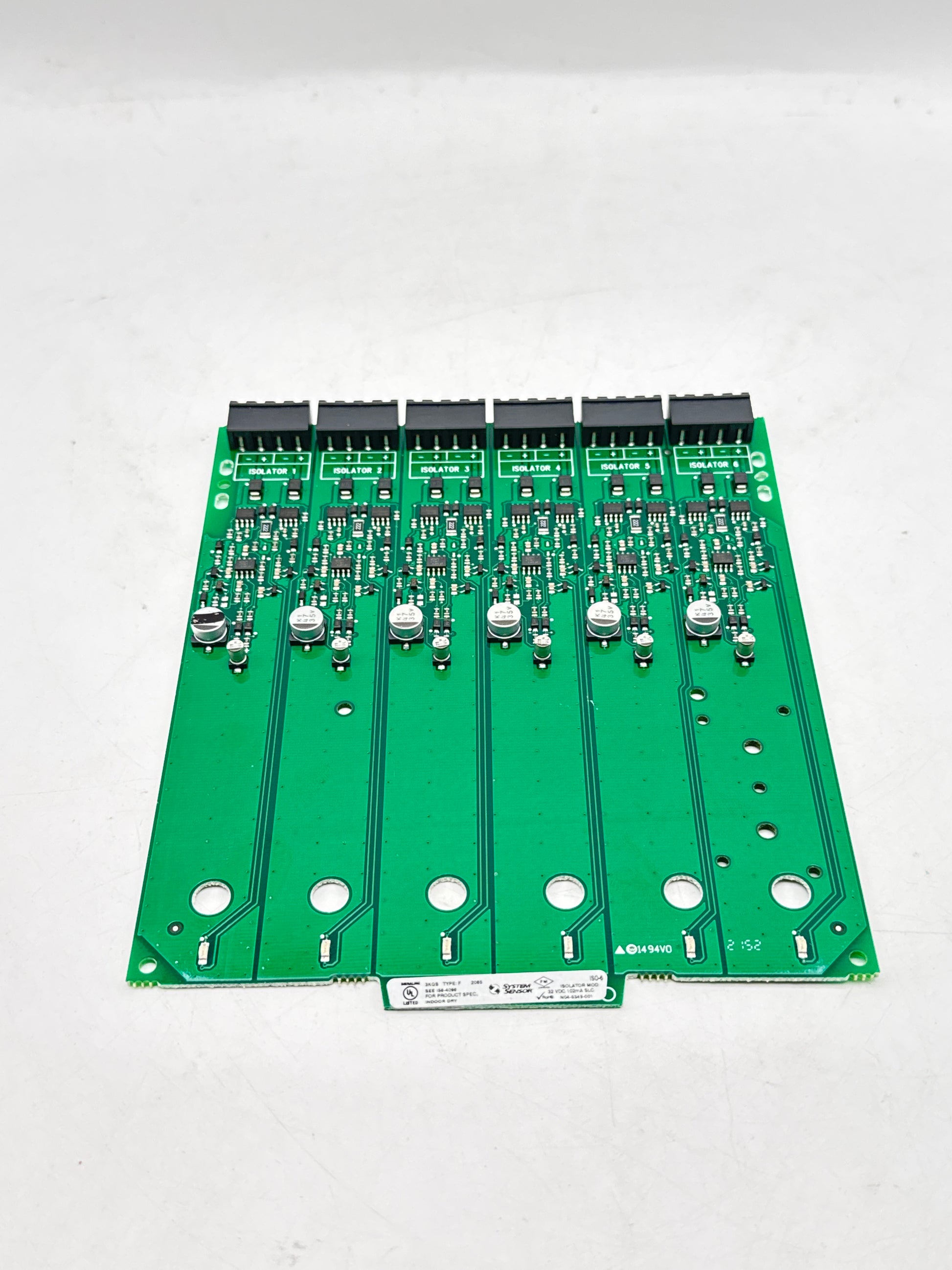

System Sensor ISO-6 6-Circuit Isolator Module
System Sensor ISO-6 6-Circuit Isolator Module
Regular price
$249.99 USD
Regular price
Sale price
$249.99 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
| Item | Description |
|---|---|
| Brand | System Sensor |
| Model / Part No. | ISO-6 Six-Circuit Isolator Module |
| Type | Fault / Short-Circuit Isolator Module for SLC loops |
| Function | Isolates short-circuit faults on signaling line loops: if a short occurs, only affected segment is isolated — rest of loop stays operational. :contentReference[oaicite:1]{index=1} |
| Circuits / Capacity | Six independent Class B isolator circuits :contentReference[oaicite:2]{index=2} |
| Indicators | Amber LED per input — blinks in normal state; latches on when a short-circuit condition occurs :contentReference[oaicite:3]{index=3} |
| Operating Voltage | 15-32 VDC :contentReference[oaicite:4]{index=4} |
| Current Draw | ≈ 450 µA per circuit standby; 2.7 mA total when idle. When isolating: 17 mA per circuit, 102 mA with all circuits isolated. :contentReference[oaicite:5]{index=5} |
| Physical Dimensions | 6.8″ H × 5.8″ W × 1.0″ D :contentReference[oaicite:6]{index=6} |
| Mounting / Wiring | Removable 12–18 AWG plug-in terminal blocks; mounts in optional enclosures (e.g. up to 2 per BB-2F or up to 6 on CHS-6 chassis / BB-6F cabinet) :contentReference[oaicite:7]{index=7} |
| Environmental / Operating Conditions | Temperature: 32º–120º F (0–49 °C); Humidity: 10–85% non-condensing :contentReference[oaicite:8]{index=8} |
| Includes | ISO-6 module (isolator unit) and mounting hardware. Enclosure / cabinet OPTIONAL unless specified. :contentReference[oaicite:9]{index=9} |
| Use Case / Application | Used in addressable or conventional fire-alarm / signaling-line circuits to segment loop wiring, limit impact of shorts, and ensure rest of system remains functional. Ideal for commercial or large installations. :contentReference[oaicite:10]{index=10} |
| Condition / Notes | As-is / used / surplus (unless otherwise stated) — verify functionality and wiring before installation |
| Shipping / Returns | Packaged securely for safe delivery; returns accepted per seller policy (e.g. 30 days, buyer pays return shipping unless otherwise specified) |
