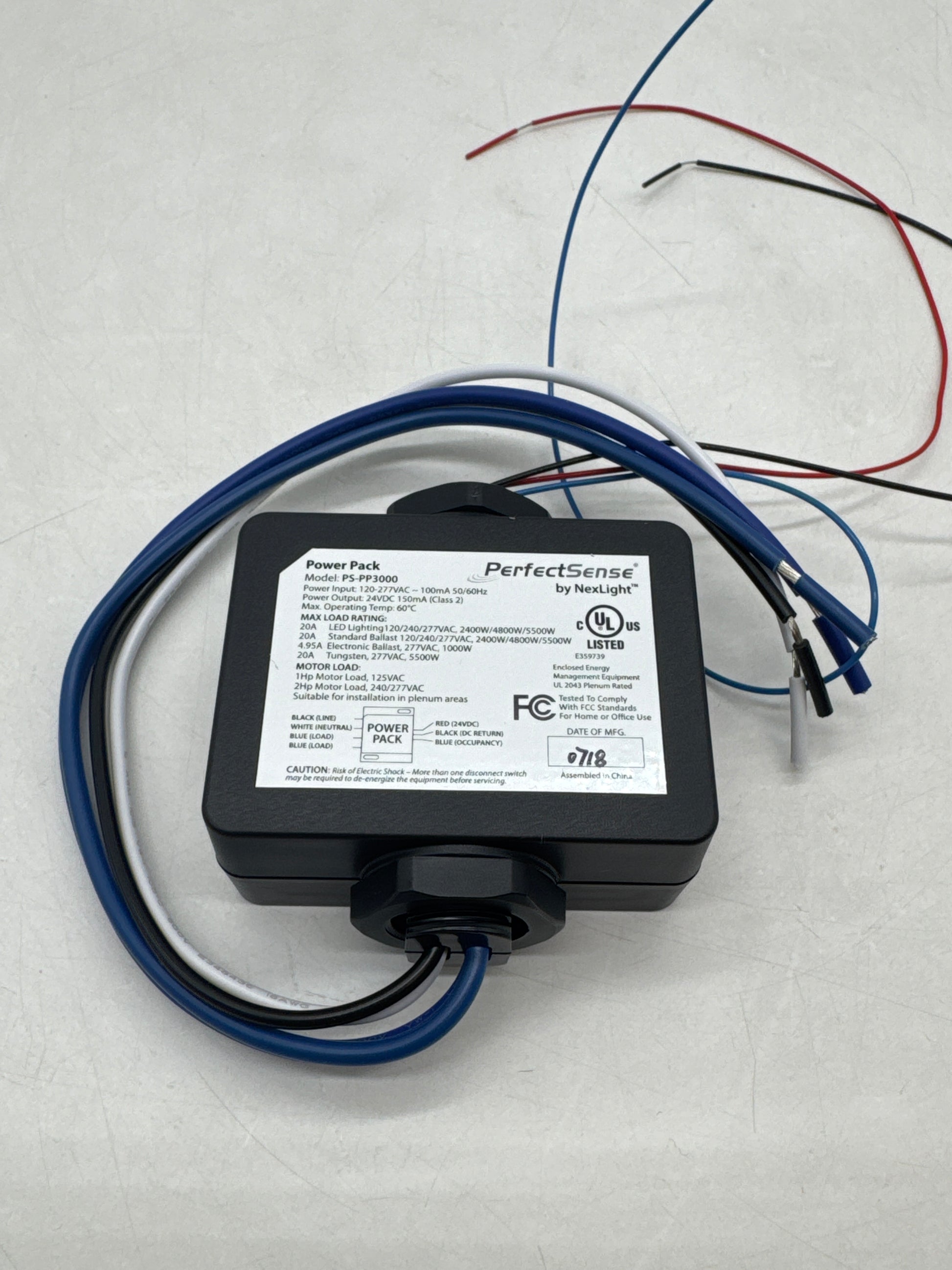

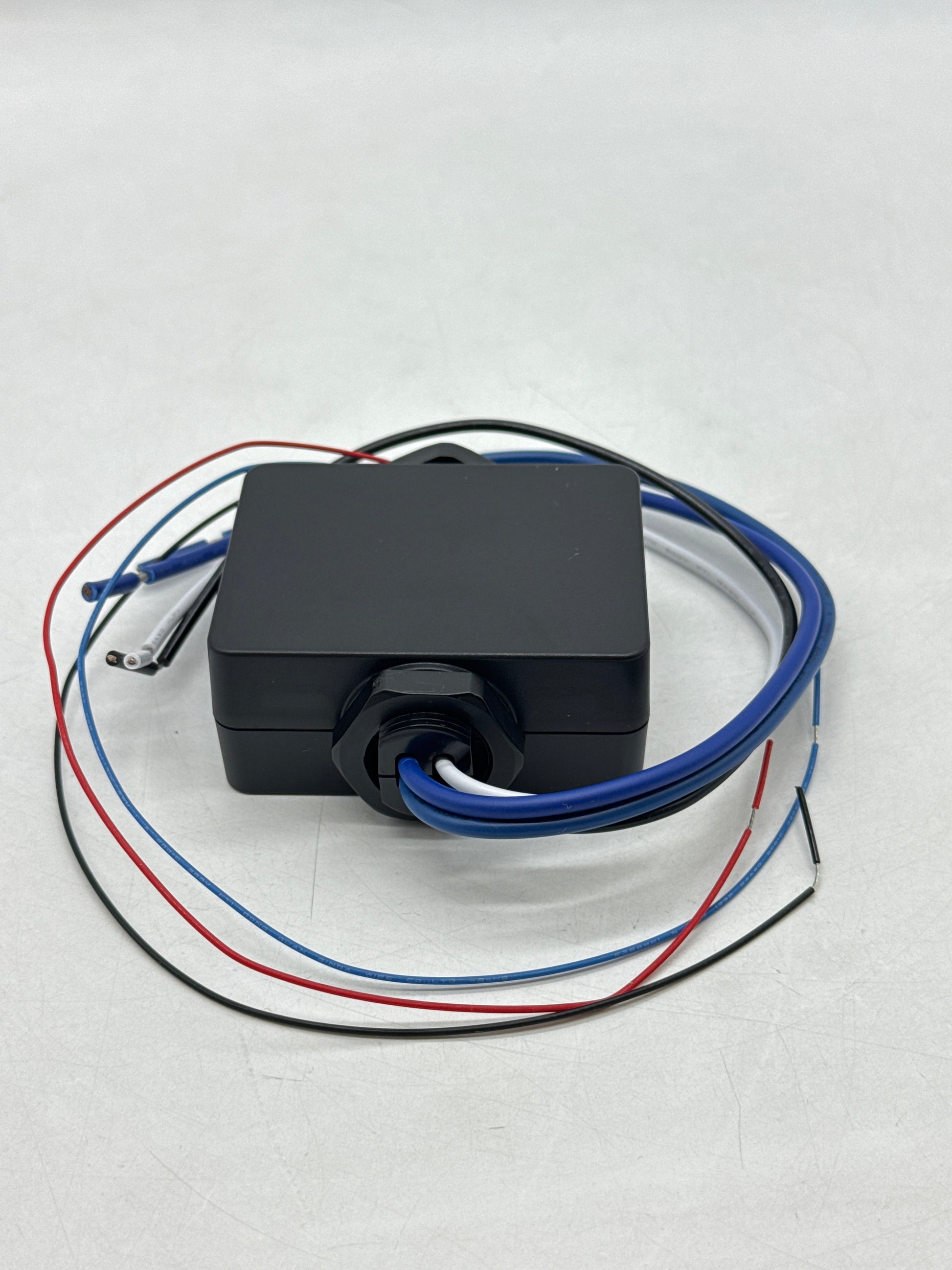

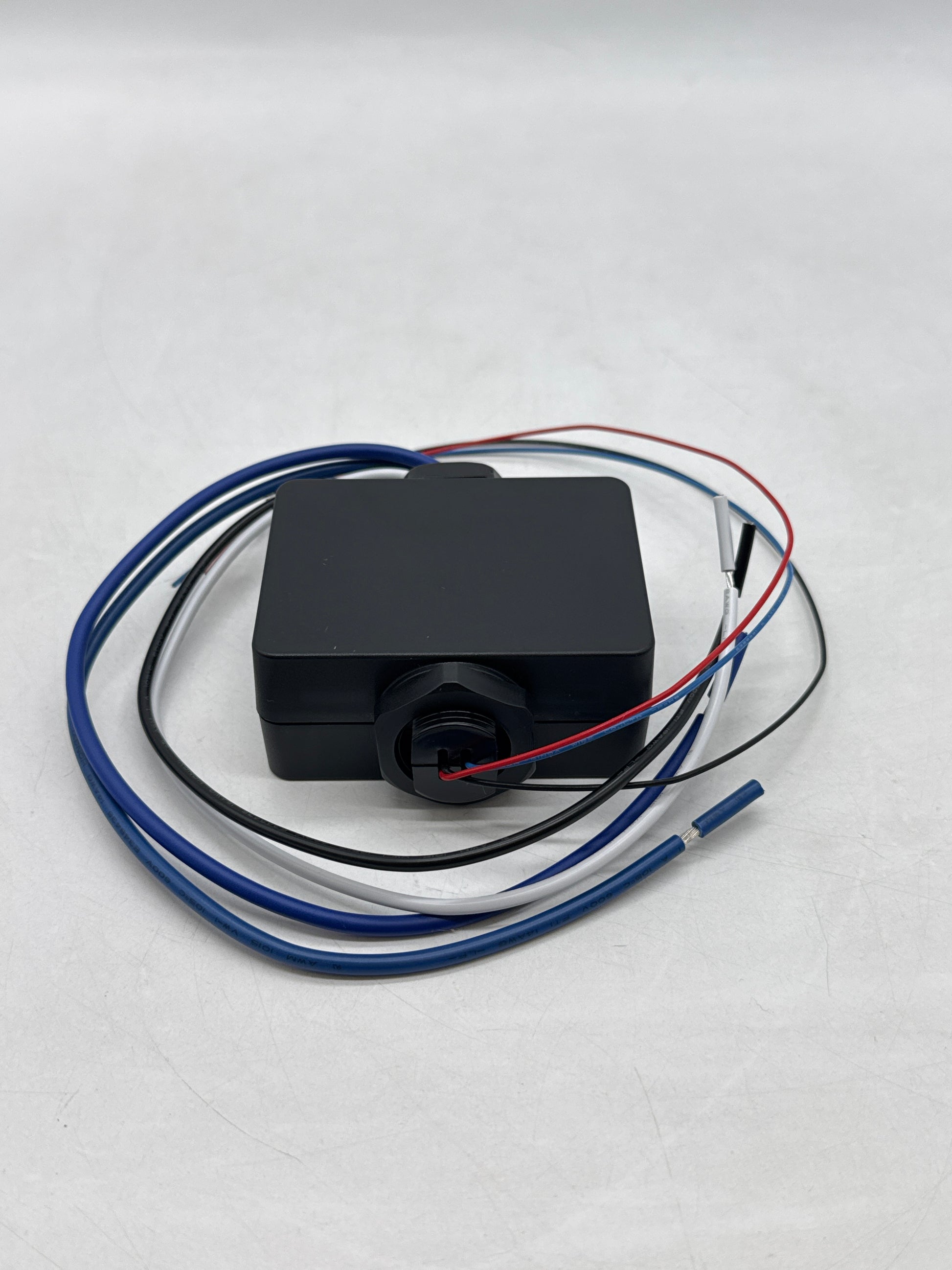

The PerfectSense PS-PP3000 contains both a 24 VDC power supply and a 20 Amp line voltage relay providing low voltage power and line voltage control for PerfectSense occupancy sensors. The Power Pack can automatically be turned ON and OFF using an occupancy sensor input. Multi-circuit control can be handled using multiple power packs.
Features
• Regulated 24 VDC, 150 mA Current Output • Title 24 compliant • Internal/External Junction Box Mounting • Fluorescent Ballast Cavity Mounting • Rated for Plenum Spaces (UL2042)
Specs
RATINGS: Power Input: 120-277VAC ~ 50/60Hz Power Output: 24VDC 150mA (Class 2) Max. Operating Temp: 60°C MAX LOAD RATING: 20A LED Loads 120/240/277VAC, 2400W/4800W/5500W 20A Ballast 120/240/277VAC, 2400W/4800W/5500W 4A Electronic Ballast, 277VAC, 1000W 20A Tungsten, 277VAC, 5500W MOTOR LOAD: 1Hp Motor Load, 120VAC / 2Hp Motor Load, 240/277VAC
